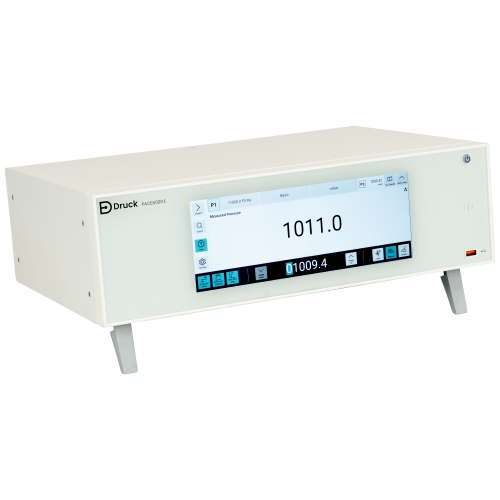

PACE 6000 E

De snelste drukregelaar in de markt

Prijs op aanvraag

Druck, een bedrijf van Baker Hughes, biedt hooggewaardeerde PACE-drukregelaars en -indicatoren die druk meten, testen en kalibreren.

Offerte

Anderen kochten ook:

PACE 5000 E

Meer info

4Sight2 Kalibratie Management Software

Meer info

Productbeschrijving
Extra informatie
Video
Downloads

Druck, een bedrijf van Baker Hughes, biedt hooggewaardeerde PACE-drukregelaars en -indicatoren die druk meten, testen en kalibreren. De PACE 6000 E is volledig backwards compatible met alle CM drukmodules van zijn voorganger de PACE 6000.

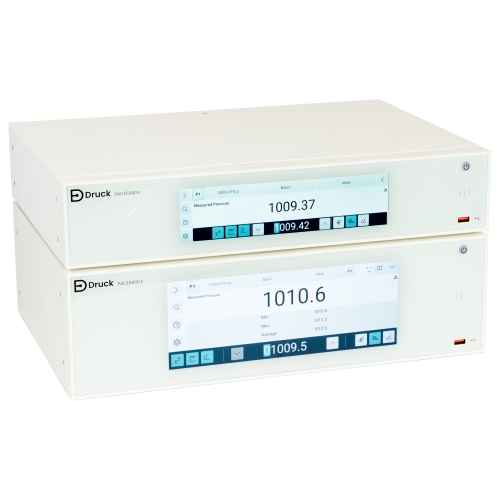

De PACE Serie pneumatische druk controllers biedt u een elegante en economische oplossing voor het uitvoeren van druk controles voor productie, test en kalibratie. Er zijn twee modellen verkrijgbaar, de PACE 5000 E welke kan worden voorzien van één drukmodule en de PACE 6000 E waar twee drukmodules gelijktijdig in kunnen worden geplaatst. De instrumenten kunnen volledig digitaal worden bediend wat zorgt voor een hoge regelstabiliteit en gecontroleerd instellen van de gewenste druk. De drukmodules zijn voorzien van piëzo-resistieve sensor technologie die een hoge kwaliteit, stabiliteit, bandbreedte en nauwkeurigheid bieden.

Met PACE CM3 presenteren we een nieuw, op maat gemaakt systeem waarbij de snelste drukregelaar, PACE, en de meest nauwkeurige referentieregelmodule, CM3, worden gecombineerd in één krachtige, zeer nauwkeurige druk meet- en regeloplossing.

Dankzij de door Druck ontwikkelde TERPS®-technologie (Trench Etched Resonant Pressure Sensor), levert CM3 ongekende metrologische kenmerken en prestaties met de PACE controllers. TERPS® is een resonant silicium druksensortechnologieplatform dat nauwkeurigheid, stabiliteit, betrouwbaarheid en kracht combineert die ongeëvenaard zijn naast vergelijkbare druksensoren. TERPS® vermindert de hoeveelheid tijd die nodig is om een sensor te kalibreren, met nauwkeurigheid op laboratoriumniveau, zelfs in de zwaarste omgevingen.
Kenmerken
- Groot Kleuren touchscreen met hoge resolutie
- Tot 210 bar (3000 psi/21 MPa) gauge en absoluut
- Plug en play verwisselbare drukmodules
- Compatible met Intecal en software van derden
- RS232 & IEEE communicatie
- Negatieve kalibratie inclusief als standaard
- 24 meeteenheden plus vier door de gebruiker te definiëren
- Druck’s unieke TERPS® en piëzo-resistieve sensor technologie toegepast
- Uitvoeringen zowel in 482 mm (19 inch) rack inbouw als tafelmodel
Toepassingen

Automatisch testen en kalibreren van druk recorders, druk indicators, druk switches en druk transmitters.

De PACE 5000 E en de PACE 6000 E zijn geschikt voor:
- Instrument workshops
- Service bedrijven
- Automotive test cells
- Fabricage
- Burst tests

Pressure Measurement
CM0/CM1/CM2 Pressure Ranges	25, 70, 200, 350 and 700 mbar gauge, 1, 2, 3.5, 7, 10, 20, 35, 70, 100, 135, 172, 210 bar gauge 0.35, 1, 3, 5, 10, 15, 30, 50, 100, 150, 300, 500, 1000, 1500, 2000, 2500, 3000 psi gauge 2.5, 7, 20, 35, 70, 100, 200, 350, 700 kPa gauge, 1, 2, 3.5, 7, 10, 13.5, 17.2, 21 MPa gauge All gauge versions available with negative calibration as standard. For absolute pressure ranges select any range of 1 bar and above and add barometric option
CM3 Pressure Ranges	1, 2.5, 7, 10, 20, 35 and 70, 100, 135, 172, 210 bar pseudo gauge 2, 3.5, 8, 11, 21, 36, 71, 101, 136, 173 and 211 Bar absolute 15, 36, 101, 145, 290, 507, 1015, 1450, 1958, 2494, 3046 Psi pseudo gauge 29, 44, 73, 116, 160, 305, 522, 1030, 1465, 1973, 2509, 3060 psi absolute 0.1, 0.25, 0.7, 1.2, 3.5, 7, 10, 13.5, 17.2 21 MPa pseudo gauge 0.2, 0.3, 0.5, 0.8, 1.1, 2.1, 3.6, 7.1, 10.1, 13.6, 17.3, 21.1 MPa absolute (other ranges available, please consult factory)
Over Range Indication	10% above mbar/bar full scale pressure range
Pressure Media	Dry, oil free, non-corrosive gas maintained at a value of 10% above the maximum required outlet pressure, Dry air or Nitrogen recommended.
Display
PACE5000	LCD: Color display with touchscreen. 216 mm x 54 mm (8.5" x 2.1")
PACE6000	LCD: Color display with touchscreen. 243 mm x 91 mm (9.6" x 3.6")
Comms Update Rate	20 times per second
Display Update Rate	2 times per second
Readout	±9999999
Pressure Units	mbar, bar, Pa(N/m2), hPa, kPa, MPa, mmHg @ 0°C, cmHg @ 0°C, mHg @ 0°C,, inHg @ 0°C, mmH2O @ 4°C, cmH2O @ 4°C, mH2O @ 4°C, mmH2O @ 20°C, cmH2O @20 °C, mH2O @ 20 °C, kg/m2, kg/cm2, torr, atm, psi, lb/ft2, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F, User Defined 1, User Defined 2, User Defined 3, User Defined 4
Performance
PACE CM0 Standard Precision	0.02% Rdg + 0.02% FS (25 mbar: 0.20% rdg + 0.20% FS, 70 mbar: 0.10% rdg + 0.10% FS, 200 mbar: 0.04% rdg + 0.04% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing.
PACE CM0 Controller Stability	0.005% FS
PACE CM1 High Precision	0.01% Rdg + 0.01% FS (25 mbar: 0.10% rdg + 0.10% FS, 70 mbar: 0.05% rdg + 0.05% FS, 200 mbar: 0.02% rdg + 0.02% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing.
PACE CM1 Controller Stability	0.003% FS (25mbar range = 0.005% FS)
PACE CM2 Premium Precision	0.005% Rdg + 0.005% FS (25 mbar: 0.05% rdg + 0.05% FS, 70 mbar: 0.025% rdg + 0.025% FS, 200 mbar: 0.01% rdg + 0.01% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing.
PACE CM2 – Controller Stability	0.001% FS (25mbar = 0.004% FS. 70 mbar = 0.003% FS)
PACE CM2-A Aeronautical	Altitude range: -3000 to +55,000 ft Altitude precision: @ Sea level ±2 ft, @ 8500 ft ±3 ft, @ 35,000 ft ±9 ft Altitude RVSM accuracy: @ Sea level ±5 ft, @ 29,000 ft ±25 ft, @ 41,000 ft ±46 ft, @ 35,000 ft ±33 ft Airspeed range: to 650 knots Airspeed precision: @ 50 knots ±1.00 kts, @ 250 knots ±0.21 kts, @500 knots ±0.11 kts Pressure Range –1 to +1bar g, pressure precision 0.005% Rdg + 0.005% FS includes linearity, hysteresis, repeatability and temperature effects for gauge pressures and assumes steady state temperature and regular zeroing. 1300 mbar reference precision 0.005% FS, Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.
PACE CM3 Reference Precision	0.001% FS for 2, 3.5 bar a includes non-linearity, hysteresis, repeatabilty and temperature effects over calibrated temperature range. 0.0015% FS for 8-211 bar a includes non-linearity, hysteresis, repeatabilty and temperature effects over calibrated temperature range.
PACE CM3 Controller Stability	0.001% of absolute range FS
PACE CM3 Accuracy	Absolute ranges 2, 3.5 bar accuracy (2 Sigma) over calibrated temperature range 0.0004%Rdg + 0.0027% FS. 8-101 bar 0.0011% RDG + 0.0026 % FS* 136 Bar 0.0025% RDG + 0.0023 % FS* 173 Bar 0.0026% RDG + 0.0022 % FS* 211 Bar 0.0027% RDG + 0.0022 % FS* Includes measurement precision, measurement long-term stability (see below) and calibration equipment expanded uncertainty. Pseudo gauge range accuracy (3.5bara and below) will need to include the barometer uncertainty using the RSS (root sum of squares) method.
PACE CM Measurement Long Term Stability	CM0, CM1 and CM2 Ranges: 2 bar g to 210 bar g (30 psi g to 3000 psi g) 0.01% of reading per annum, 1 bar g 0.02% of reading per annum and 25 mbar g to 700 mbar g 0.03% of reading per annum, assumes regular Zeroing. CM3 Ranges: 0.0025% FS per annum absolute ranges. CM0-B, CM1-B, CM2-B, CM3-B and CM2-A: Barometric reference sensor 0.05 mbar a or 0.00072515 psi a per annum. CM3-B Pseudo Gauge Ranges: Absolute sensor plus barometric sensor.
Negative Gauge Precision	Maximum error at any given pressure value is equal to maximum error at the equivalent positive pressure value (CM0, CM1 and CM2).
Pseudo Range Precision	Pseudo Absolute: gauge mode precision + barometric reference precision Pseudo Gauge: absolute precision + barometric precision
PACE CM0-B Precision- Barometric Reference	Precision for the optional barometric reference 0.10 mbar or 0.001450 psi. Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.
PACE CM1-B Precision- Barometric Reference	Precision for the optional barometric reference 0.05 mbar or 0.000725 psi. Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.
PACE CM2-B Precision- Barometric Reference	Precision for the optional barometric reference 0.025 mbar or 0.0003625 psi. Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.
PACE CM3-B Precision- Barometric Reference	Precision for the optional barometric reference 0.020 mbar or 0.0002901 psi. Includes non- linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.
PACE CM3-B Accuracy- Barometric Reference	Barometer accuracy (2 Sigma) = 0.06 mbar over the calibrated temperature range. Includes measurement precision, measurement long term stability per annum and calibration equipment expanded uncertainty ≤ (0.0032% Rdg + 0.7 Pa).
Gas Consumption	All supply gas is delivered to the system. No gas is used in measure mode, or when the instrument is turned off.
Electrical
Power Supply	90 V AC to 130 V AC @ 47 to 63 Hz & 180 V AC to 260 V AC @ 47 to 63 Hz. Universal input via IEC320 C14 Connector.
VFC Contact rating	30V d.c. 1 Amp resistive/200 mA inductive
Communications
Communication	USB-A, USB-C, USB Type B/USB TMC, ethernet (LXI conformant) and RS232 (optional), GPIB IEEE-488 (Optional), SCPI99 compliant, emulation (DPI520, DPI500, DPI510 & DPI515 depending on model and PACE 5000 and PACE 6000)
Environmetal
Temperature	Operating 0°C to 55°C (32°F to 131°F) Calibrated 15°C to 45°C (59°F to 113°F) Storage -20°C to 70°C (-4°F to 158°F)
Humidity Sealing Vibration Shock Conformity	5% RH to 95% RH non-condensing IP20 (EN60529), In door use only Compliant with Def. Stan. 66-31 8.4 Cat 3 and MIL-T-28800 Cat 2 Mechanical shock conforms to EN61010-1 UL 611010-1 EMC EN61326-1, PED, ROHS & WEEE – CE marked
Physical
PACE Chassis - Weight	PACE5000 E 5.6 Kg or 12.3 lbs, PACE6000 E 7.2 Kg or 15.9 lbs
PACE CM – Weight	5 Kg or 11 lbs
PACE CM – Pressure Connection	G 1/8 Female (1/8 NPT Female by adaptor for North America)
PACE 5000 E – Dimensions	440 mm X 88 mm (2U) X 320 mm (17.3” X 3.47” X 12.6”)
PACE 6000 E – Dimensions	440 mm X 132 mm (3U) X 320 mm (17.3” X 5.2” X 12.6”)
