PACE 6000

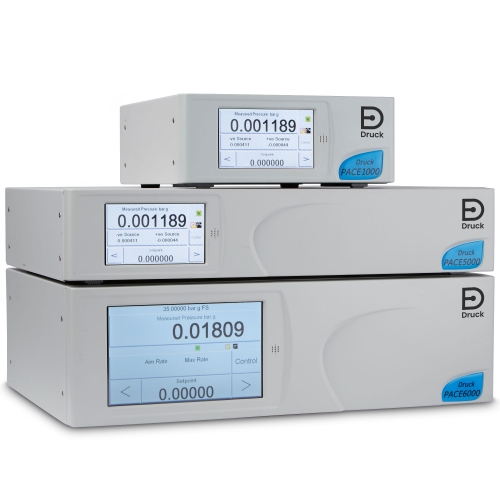

De snelste drukregelaar in de markt

Prijs op aanvraag

Druck, een bedrijf van Baker Hughes, biedt hooggewaardeerde PACE-drukregelaars en -indicatoren die druk meten, testen en kalibreren.

Offerte


  • Productbeschrijving
  • Extra informatie
  • Video
  • Downloads
  • Druck, een bedrijf van Baker Hughes, biedt hooggewaardeerde PACE-drukregelaars en -indicatoren die druk meten, testen en kalibreren.

    De PACE Serie pneumatische druk controllers biedt u een elegante en economische oplossing voor het uitvoeren van druk controles voor productie, test en kalibratie. Er zijn twee modellen verkrijgbaar, de PACE 5000 welke kan worden voorzien van één drukmodule en de PACE 6000 waar twee drukmodules gelijktijdig in kunnen worden geplaatst. De instrumenten kunnen volledig digitaal worden bediend wat zorgt voor een hoge regelstabiliteit en gecontroleerd instellen van de gewenste druk. De drukmodules zijn voorzien van piëzo-resistieve sensor technologie die een hoge kwaliteit, stabiliteit, bandbreedte en nauwkeurigheid bieden.

    Met PACE CM3 presenteren we een nieuw, op maat gemaakt systeem waarbij de snelste drukregelaar, PACE, en de meest nauwkeurige referentieregelmodule, CM3, worden gecombineerd in één krachtige, zeer nauwkeurige druk meet- en regeloplossing.

    Dankzij de door Druck ontwikkelde TERPS®-technologie (Trench Etched Resonant Pressure Sensor), levert CM3 ongekende metrologische kenmerken en prestaties met de PACE controllers. TERPS® is een resonant silicium druksensortechnologieplatform dat nauwkeurigheid, stabiliteit, betrouwbaarheid en kracht combineert die ongeëvenaard zijn naast vergelijkbare druksensoren. TERPS® vermindert de hoeveelheid tijd die nodig is om een sensor te kalibreren, met nauwkeurigheid op laboratoriumniveau, zelfs in de zwaarste omgevingen.

    Kenmerken

    • Kleuren touchscreen met hoge resolutie
    • Tot 210 bar (3000 psi/21 MPa) gauge en absoluut

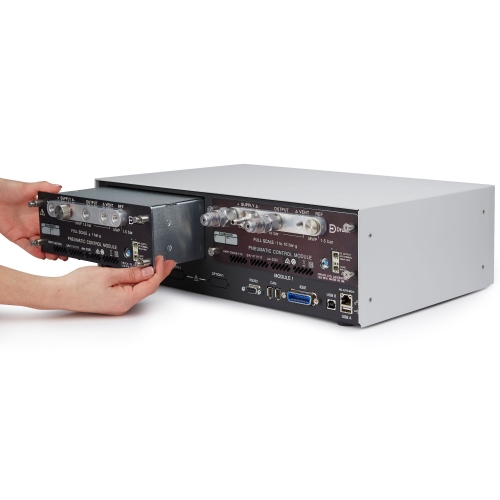

    • Plug en play verwisselbare drukmodules
    • Compatible met Intecal en software van derden
    • RS232 & IEEE communicatie
    • Negatieve kalibratie inclusief als standaard
    • 24 meeteenheden plus vier door de gebruiker te definiëren
    • Druck’s unieke TERPS® en piëzo-resistieve sensor technologie toegepast
    • Uitvoeringen zowel in 482 mm (19 inch) rack inbouw als tafelmodel

    Toepassingen

    Automatisch testen en kalibreren van druk recorders, druk indicators, druk switches en druk transmitters.

    De PACE 5000 en de PACE 6000 zijn geschikt voor:
    • Instrument workshops
    • Service bedrijven
    • Automotive test cells
    • Fabricage
    • Burst tests (enkel PACE 6000)
  • Pressure Measurement

    CM0/CM1/CM2 Pressure Ranges:

    25, 70, 200, 350 and 700 mbar gauge, 1, 2, 3.5, 7, 10, 20, 35, 70, 100, 135, 172, 210 bar gauge
    0.35, 1, 3, 5, 10, 15, 30, 50, 100, 150, 300, 500, 1000, 1500, 2000, 2500, 3000 psi gauge
    2.5, 7, 20, 35, 70, 100, 200, 350, 700 kPa gauge, 1, 2, 3.5, 7, 10, 13.5, 17.2, 21 MPa gauge
    All gauge versions available with negative calibration as standard. For absolute pressure ranges select any range of 1 bar and above and add barometric option

    CM3 Pressure Ranges:
    2, 3.5 bar absolute; 30, 50 psi absolute; 200, 350 kPa absolute 7,10,20,35 and 70 bar pseudo Gauge
    8, 11, 21, 36, 71 Bar a
    100 (101), 150 (145), 300(290), 500 (507), 1000 (1015) Psi Gauge 116, 160, 304, 522, 1029 psi a

    0.7, 1,2, 3.5, 7 MPa Gauge
    0.8, 1.1, 2.1, 3.6, 7.1 MPa Abs
    (other ranges available, please consult factory)

    Over Range Indication:

    10% above mbar/bar full scale pressure range

    Pressure Media:

    Dry, oil free, non-corrosive gas maintained at a value of 10% above the maximum required outlet pressure, Dry air or Nitrogen recommended.

    Display

    PACE5000

    4.3” TFT colour VGA resolution wide format display with integral touchscreen

    PACE6000

    7” TFT colour VGA resolution wide format display with integral touchscreen

    Comms Update Rate

    8 times per second

    Display Update Rate

    2 times per second

    Readout

    ±9999999

    Pressure Units

    mbar, bar, Pa(N/m2), hPa, kPa, MPa, mmHg @ 0°C, cmHg @ 0°C, mHg @ 0°C,, inHg @ 0°C, mmH2O @ 4°C, cmH2O @ 4°C, mH2O @ 4°C, mmH2O @ 20°C, cmH2O @20 °C, mH2O @ 20 °C, kg/m2, kg/cm2, torr, atm, psi, lb/ft2, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F, User Defined 1, User Defined 2, User Defined 3, User Defined 4

    Performance

    PACE CM0 Standard Precision

    0.02% Rdg + 0.02% FS (25 mbar: 0.20% rdg + 0.20% FS, 70 mbar: 0.10% rdg + 0.10% FS, 200 mbar: 0.04% rdg + 0.04% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing

    PACE CM0 Controller Stability

    0.005% FS

    PACE CM1 High Precision

    0.01% Rdg + 0.01% FS (25 mbar: 0.10% rdg + 0.10% FS, 70 mbar: 0.05% rdg + 0.05% FS, 200 mbar: 0.02% rdg + 0.02% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing

    PACE CM1 Controller Stability

    0.003% FS (25mbar range = 0.005% FS)

    PACE CM2 Premium Precision

    0.005% Rdg + 0.005% FS (25 mbar: 0.05% rdg + 0.05% FS, 70 mbar: 0.025% rdg + 0.025% FS, 200 mbar: 0.01% rdg + 0.01% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing

    PACE CM2 – Controller Stability

    0.001% FS (25mbar = 0.004% FS. 70 mbar = 0.003% FS)

    PACE CM2-A Aeronautical

    Altitude range: -3000 to +55,000 ft
    Altitude precision: @ Sea level ±2 ft, @ 8500 ft ±3 ft, @ 35,000 ft ±9 ft
    Altitude RVSM accuracy: @ Sea level ±5 ft, @ 29,000 ft ±25 ft, @ 41,000 ft ±46 ft, @ 35,000 ft ±33 ft
    Airspeed range: to 650 knots
    Airspeed precision: @ 50 knots ±1.00 kts, @ 250 knots ±0.21 kts, @500 knots ±0.11 kts
    Pressure Range –1 to +1bar g, pressure precision 0.005% Rdg + 0.005% FS includes linearity, hysteresis, repeatability and temperature effects for gauge pressures and assumes steady state temperature and regular zeroing.
    1300 mbar reference precision 0.005% FS, Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.

    PACE CM3 Reference Precision

    0.001% FS for 2, 3.5 bar a includes non-linearity, hysteresis, repeatabilty and temperature effects over calibrated temperature range
    0.0015% FS for 8-71 bar a includes non-linearity, hysteresis, repeatabilty and temperature effects over calibrated temperature range

    PACE CM3 Controller Stability

    0.001% of absolute range FS

    PACE CM3 Accuracy

    Absolute ranges 2, 3.5 bar accuracy (2 Sigma) over calibrated temperature range 0.0016%Rdg + 0.0033% FS. 8-71 bar 0.0011% RDG + 0.0026 % FS*.
    Includes measurement precision, measurement long term stability (see below) and calibration equipment expanded uncertainty. Pseudo gauge ranges accuracy will need to include the barometer uncertainty using the RSS (root sum of squares) method.

    PACE CM Measurement Long Term Stability

    CM0, CM1 and CM2 Ranges: 2 bar g to 210 bar g (30 psi g to 3000 psi g) 0.01% of reading per annum, 1 bar g 0.02% of reading per annum and 25 mbar g to 700 mbar g 0.03% of reading per annum, assumes regular Zeroing
    CM3 Ranges: 2, 3.5 bar a 0.0025% FS per annum absolute ranges. CM3 Ranges: 8-71 bar a 0.001% FS per 28 days*
    CM0-B, CM1-B, CM2-B, CM3-B and CM2-A: Barometric reference sensor 0.05 mbar a or 0.00072515 psi a per annum.


    Performance (cont.)

    Negative Gauge Precision

    Maximum error at any given pressure value is equal to maximum error at the equivalent positive pressure value (CM0, CM1 and CM2).

    Pseudo Range Precision

    Pseudo Absolute: gauge mode precision + barometric reference precision
    Pseudo Gauge: absolute precision + barometric precision

    PACE CM0-B Precision- Barometric Reference

    Precision for the optional barometric reference 0.10 mbar or 0.001450 psi. Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.

    PACE CM1-B Precision- Barometric Reference

    Precision for the optional barometric reference 0.05 mbar or 0.000725 psi. Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.

    PACE CM2-B Precision- Barometric Reference

    Precision for the optional barometric reference 0.025 mbar or 0.0003625 psi. Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.

    PACE CM3-B Precision- Barometric Reference

    Precision for the optional barometric reference 0.020 mbar or 0.0002901 psi. Includes non- linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.

    PACE CM3-B Accuracy- Barometric Reference

    Barometer accuracy (2 Sigma) = 0.1 mbar over the calibrated temperature range. Includes measurement precision, measurement long term stability per annum and calibration equipment expanded uncertainty ≤ (0.0032% Rdg + 0.7 Pa).

    Gas Consumption

    All supply gas is delivered to the system. No gas is used in measure mode, or when the instrument is turned off.

    Electrical

    Power Supply

    90 V AC to 130 V AC @ 47 to 63 Hz & 180 V AC to 260 V AC @ 47 to 63 Hz. Universal input via IEC320 C14 Connector.

    VFC Contact rating

    30V d.c. 1 Amp resistive/200 mA inductive

    Communications

    Communication

    RS232, USB and IEEE-488, SCPI, emulation (DPI520, DPI500, DPI510 & DPI515 depending on model) Ethernet (VXI-II & Sockets using SCPI)

    Environmetal

    Temperature

    Operating    10°C to 50°C (50°F to 122°F) Calibrated    15°C to 45°C (59°F to 113°F) Storage    -20°C to 70°C (-4°F to 158°F)

    Humidity Sealing Vibration Shock Conformity

    5% RH to 95% RH non-condensing IP20 (EN60529), In door use only
    Compliant with Def. Stan. 66-31 8.4 Cat 3 and MIL-T-28800E Cat 2 Mechanical shock conforms to EN61010 LVD EN61010, EMC EN61326, PED, ROHS & WEEE - CE marked

    Physical

    PACE Chassis - Weight

    PACE5000 5 Kg or 11 lbs, PACE6000 6.7 Kg or 17.7 lbs

    PACE CM – Weight

    5 Kg or 11 lbs

    PACE CM – Pressure Connection

    G 1/8 Female (1/8 NPT Female by adaptor for North America)

    PACE 5000 – Dimensions

    440 mm X 88 mm (2U) X 320 mm (17.3” X 3.47” X 12.6”)

    PACE 6000 – Dimensions

    440 mm X 132 mm (3U) X 320 mm (17.3” X 5.2” X 12.6”)

    *to achieve optimum performance zeroing against the internal barometer is recommended every 28 days

  •
