Easidew PRO XP Dauwpunt Transmitter

Prijs op aanvraag

De Easidew PRO XP transmitter is ontworpen voor het meten van dauwpunt of het vochtgehalte in diverse gas of vloeistof applicaties.

Offerte

Productbeschrijving
Extra informatie
Video
Downloads

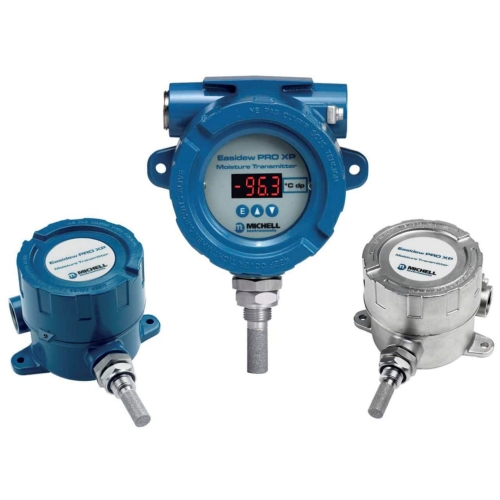

De Easidew PRO XP transmitter is ontworpen voor het meten van dauwpunt of het vochtgehalte in diverse gas of vloeistof applicaties.

Het ontwerp van deze transmitter levert niet alleen een robuuste en betrouwbare transmitter maar zorgt tevens voor een korte installatie tijd. Geschikt voor werelwijde explosie en flame proof toepassingen.

Kenmerken
- Measurement ranges -110 up to +20°Cdp
- Global explosion / flameproof certification
- Accuracy ±1°Cdp
- 2-wire 4-20 mA output
- Traceable 13-point calibration certificate
- 6500 psig pressure rating
- 3/4” UNF industry standard process connection
- EN 10204 3.1 material certification
- Moisture in gases and liquids
- Optional integral display meter

	Easidew PRO XP for Gases	Easidew PRO XP LQ for Liquids
Performance Specifications
Measurement Range	-110 to +20°C dew point; -100 to +20°C dew point	0 to 1000 ppmW; Non-standard available on request
Accuracy	±1°C dew point (+20 to -60°C); ±2°C dew point (-60 to -110°C)
Response Time	5 mins to T95 (dry to wet)
Repeatability	0.5°C dew point
Calibration	Traceable 13 point calibration and certificate
Electrical Specifications
Output Signal	4-20 mA (2-wire connection, current source); User configurable over range
Output	Dew point or moisture content	Moisture content
Analog Output Scaled Range	Dew point: -110 to +20°C Moisture content in gas: 0-3000 ppmV Non-standard:mg/m3, lbs/MMSCF natural gas	Moisture content in liquid: 0-1000 ppmW Non-standard available on request
Supply Voltage	14 to 28 V DC
Load Resistance	Max 250 Ω @ 14 V (500 Ω @ 24 V)
Current Consumption	23 mA max, depending on output signal
Saturation Constants (for moisture in liquids measurements only)		6-point look-up table for saturation constants up to 1000 ppmW over the temperature range 0 to +50°C; Saturation constants for 8 common liquids can be programmed into the Easidew PRO XP LQ via the application software; Alternatively the user can program saturation constants manually
CE Conformity	2004/108/EC, 94/9/E ATEX directive
Operating Specifications
Operating Temperature	-40 to +60°C
Compensated Temperature Range	-20 to +50°C NOTE: The transmitter accuracy statement is only valid for the temperature range: -20/+50°C
Storage Temperature	-40 to +60°C
Operating Pressure	45 MPa (450 barg) maximum
Flow Rate	1 to 5 Nl/min mounted in standard sampling block 0 to 10 m/sec direct insertion
Mechanical Specifications
Ingress Protection	IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance with standard NEMA 250-2003
Explosion and Flameproof Area Certificates		Standard: aluminium	Optional: 316 stainless Steel
	ATEX:	II 2 GD Exd [ia] IIC T6 Gb EX tb IIIC T80°C Db IP66 Tamb -20°C to +70°C	II 2 GD Exd [ia] IIC T6 Gb EX tb IIIC T80°C Db IP66 Tamb -20°C to +70°C
	IECEx:	Exd [ia] IIC T6 Gb Ex tb IIIC T80°C Db IP66 Tamb -20°C to +70°C	Exd [ia] IIC T6 Gb Ex tb IIIC T80°C Db IP66 Tamb -20°C to +70°C
	CCSAUS:	CLS I, Div1, GRPS ABCD CLS II & III, Div1, GRPS EFG CLS I, Zone 1 AEx/Exd [ia] IIC T6 Zone 21, AEx/Ex tb IIIC T80°C Tamb = -20°C to +70°C IP66	CLS I, Div1, GRPS ABCD CLS II, Div1, GRPS EFG Tamb = -20°C to +70°C IP66
	INMETRO (Brazil):	[Approval codes as per IECEx]
	TC TR EX-Certificate:	1Ex d [ia] IIC T6 Gb X Ex tb IIIC T80°C Db X Tamb –20°C to +70°C (Russia, Belarus, Kazakhstan)
Russian Pattern Approval	Pending: Russia (GOST-R), Kazakhstan (GOST-K)
Canadian Pressure Vessel Certification	C.R.N. - all Canadian provinces
Oxygen service	Optional: cleaned for enriched oxygen
Housing material	Standard: Aluminium (copper free), epoxy and polyurethane powder coated, blue RAL 5009 Optional: 316 stainless steel (Housing supplied with EN10204 3.1 material cert. if option F2 requested) (ATEX, IECEx only)
Filter (sensor protection)	Standard: Stainless steel sintered guard (for protection against fine particulate >80μm) Optional: HDPE guard (for protection against fine particulate >10μm)
Process Connection and Material	3/4” - 16 UNF with recessed Viton® o-ring 316 stainless steel
Weight	Aluminium: 1.6kg 316 Stainless Steel: 2.4kg
Electrical Connections	Dual 3/4” NPT gland
Programmable display meter range	Optional: -1999 to +9999
Programmable display decimal point	Optional: 0 to 3 decimal places
Display meter overload limits	Optional: 3.6 mA & 20.4 mA
Programmable display meter scales	Optional: °C, °F, %, No Scale
Stainless steel tags	Optional: 316 stainless steel tags (70 x 25mm)
