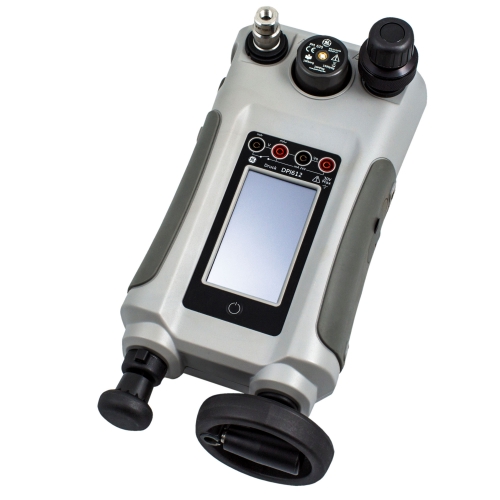

DPI 612
Prijs op aanvraag
De DPI 612 Flex-serie drukkalibrators zijn de volgende generatie van GE Druck-kalibrators die drukgeneratie, signaalmeting en lusvoeding combineren in
- Productbeschrijving
- Extra informatie
- Downloads
-

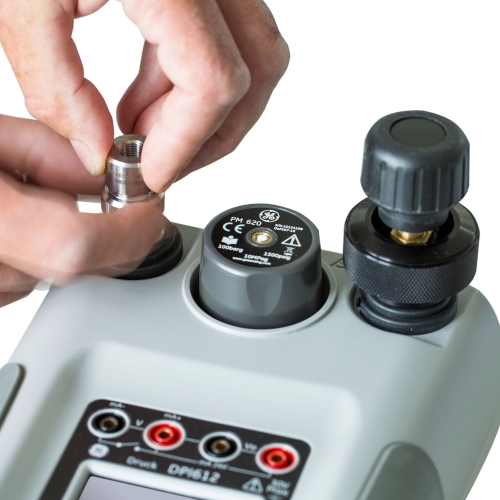

De DPI 612 Flex-serie drukkalibrators zijn de volgende generatie van GE Druck-kalibrators die drukgeneratie, signaalmeting en lusvoeding combineren in één enkel instrument. Net als de DPI 611 zijn ze robuust en gemakkelijk te gebruiken, maar hebben ze ook de extra functionaliteit van verwisselbare drukmodules die het eenvoudig maken om in het veld opnieuw te reiken voor de beste nauwkeurigheid. Ze bieden alle gemak van de Druck DPI 610/615-serie, met aanzienlijk verbeterde generatiemogelijkheden, hogere nauwkeurigheid en vereenvoudigde bediening via het aanraakscherm.
-
Display
Size: 110 mm (4.3 inchs) diagonal. 480 x 272 pixels. LCD color display with touch screen
Internal Memory
8Gb (nominal) user memory for automated procedures, calibration data and data log files
Languages
English (default), Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Pressure Units
25 pressure units are available for the user to select (country restrictions may apply)(mbar, bar, Pa, hPa, kPa, MPa, mmHg, cmHg, mHg, inHg, kgcm2, kgm2, mmH2O, cmH2O, mH2O, torr, atm, psi, lbft2, inH2O@4ºC, inH2O@20ºC, inH2O@60ºF, ftH2O@4ºC, ftH2O@20ºC, ftH2O@60ºC) Calibration certificates are provided with data in three pressure units based on bar, psi (or inH2O or inHg depending on range) and Pa
Operating Temperature
-10 to 50°C (14 to 122°F). 0 to 40°C (32 to 104°F) when powered from optional mains adaptor IO620-PSU. For DPI 612 hFlexPro 4 to 50°C (39 to 122°F) with water as media
Storage Temperature
-20 to 70°C (-4 to 158°F). For DPI 612 hFlexPro 4 to 70°C (39 to 158°F) with water as media
Ingress Protection
IP 54. Protected against dust and splashing water from any direction
Humidity
0 to 90% RH none condensing. To Def Stan 66-31, 8.6 cat III
Shock/Vibration
BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2. 1 m drop tested
Altitude
Up to 2000 m
EMC
BS EN 61326-1:2013
Electrical Safety
BS EN 61010-1:2010
Pressure Safety
Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Enclosure Materials
Polycarbonate, polyamide, polypropylene, acrylic, cotton
Approved
CE marked
Power Supply
Lithium-ion Battery GE Part Number: CC3800GE supplied as standard. Capacity: 3800 mAh 14.1Wh. Nominal Voltage: 3.7 V. Charge Temperature: 0 to 40°C (32 to 104°F). Discharge Temperature: -10 to 60°C (14 to 140°F). Charge/Discharge Cycles: > 500 > 70% capacity. Battery Eliminator/charger: (GE part number: IO620-PSU) supplied as standard. Alternatively 8 AA alkaline cells (not supplied) Battery life: For lithium-ion battery 12 to 26 hours depending on functions For AA alkaline cells 18 to 26 hours depending on functions
Connectivity
USB type A, USB type mini B
Specifications Pressure Modules (PM 620)
Gauge Ranges (referenced - atmosphere)
Model
Bar
Psi
Compatible
Media typesNLH&R
20 ±2°C (68 ± 4°F)NLH&R
0 ± 50°C (32 ± 122°F)For 24 hrs
(%FS)For 24 hrs
(%FS)For 1 Year
(%FS)PM620-008G
±0.025
±10 inH2O
Non-corrosive gas/fluid
0.090
0.090
0.100
PM620-01G
±0.07
±1
0.025
0.030
0.047
PM620-02G
±0.2
±3
0.020
0.025
0.044
PM620-03G
±0.35
±5
Stainless Steel
0.020
0.025
0.044
PM620-04G
±0.7
±10
0.015
0.020
0.041
PM620-05G
±1
-14.5 to 15
0.015
0.020
0.041
PM620-07G
-1 to 2
-14.5 to 30
0.015
0.020
0.025
PM620-08G
-1 to 3.5
-14.5 to 50
0.010
0.020
0.025
PM620-10G
-1 to 7
-14.5 to 100
0.010
0.020
0.025
PM620-11G
-1 to 10
-14.5 to 150
0.005
0.020
0.025
PM620-13G
-1 to 20
-14.5 to 300
0.005
0.020
0.025
PM620-14G
0 to 35
0 to 500
0.005
0.020
0.025
PM620-16G
0 to 70
0 to 1000
0.005
0.020
0.025
PM620-165G
0 to 100
0 to 1500
0.005
0.020
0.025
PM620-17G
0 to 135
0 to 2000
0.005
0.020
0.025
PM620-18G
0 to 200
0 to 3000
0.005
0.020
0.025
Absolute Ranges (referenced - Vacuum)
Model
Bar
Psi
Compatible
Media typesNLH&R
20 ±2°C (68 ± 4°F)NLH&R
0 ± 50°C (32 ± 122°F)For 24 hrs
for 24 hrs
for 1 Year
Absolute
(%FS)Sealed Gauge
(%FS)Absolute
(%FS)Sealed Gauge
(%FS)Absolute
(%FS)Sealed Gauge
(%FS)PM620-03A
0 to 0.35
0 to 5
Stainless Steel
0.030
-
0.050
-
0.080
-
PM620-06A
0 to 1.2
0 to 30 inHG
0.020
-
0.036
-
0.070
-
PM620-07A
0 to 2
0 to 30
0.015
-
0.036
-
0.052
-
PM620-08A
0 to 3.5
0 to 50
0.015
-
0.036
-
0.050
-
PM620-10A
0 to 7
0 to 100
0.015
-
0.036
-
0.050
-
PM620-11A
0 to 10
0 to 150
0.015
0.005
0.030
0.020
0.047
0.025
PM620-13A
0 to 20
0 to 300
0.015
0.005
0.030
0.020
0.047
0.025
PM620-14A
0 to 35
0 to 500
0.015
0.005
0.030
0.020
0.047
0.025
PM620-16A
0 to 70
0 to 1,000
0.015
0.005
0.030
0.020
0.047
0.025
PM620-165A
0 to 100
0 to 1,500
0.015
0.005
0.030
0.020
0.046
0.025
PM620-17A
0 to 135
0 to 2,000
0.015
0.005
0.030
0.020
0.046
0.025
PM620-18A
0 to 200
0 to 3,000
0.015
0.005
0.030
0.020
0.046
0.025
PM620-20A
0 to 350
0 to 5,000
0.015
0.005
0.033
0.020
0.049
0.025
PM620-22A
0 to 700
0 to 10,000
0.015
0.005
0.033
0.020
0.049
0.025
PM620-23A
0 to 1000
0 to 10,000
0.015
0.005
0.033
0.020
0.049
0.025
Absolute Ranges (referenced - Vacuum)
Model
Bar
Psi
Compatible
Media typesNLH&R
20 ±2°C (68 ± 4°F)NLH&R
0 ± 50°C (32 ± 122°F)For 24 hrs
for 24 hrs
for 1 Year
Absolute
(%FS)Sealed Gauge
(%FS)Absolute
(%FS)Sealed Gauge
(%FS)Absolute
(%FS)Sealed Gauge
(%FS)PM620T-06A
0 to 1.2
0 to 30 inHG
Stainless Steel
0.020
-
0.036
-
0.070
-
PM620T-07A
0 to 2
0 to 30
0.015
-
0.036
-
0.052
-
PM620T-10A
0 to 7
0 to 100
0.015
-
0.036
-
0.050
-
PM620T-13A
0 to 20
0 to 300
0.015
0.005
0.030
0.020
0.047
0.025
PM620T-14A
0 to 35
0 to 500
0.015
0.005
0.030
0.020
0.047
0.025
PM620T-16A
0 to 70
0 to 1,000
0.015
0.005
0.030
0.020
0.047
0.025
PM620T-165A
0 to 100
0 to 1,500
0.015
0.005
0.030
0.020
0.046
0.025
-
