Additel 760-D

Automatische Handheld Druk Kalibrator

Prijs op aanvraag

Een draagbare automatische drukkalibrator in de palm van je hand, dit is de meest revolutionaire drukkalibrator op de markt!

Offerte

Productbeschrijving
Extra informatie
Video
Downloads

Een draagbare automatische drukkalibrator in de palm van je hand, dit is momenteel de meest revolutionaire drukkalibrator op de markt!

De Additel 760 serie Automatische Handheld Drukkalibrator brengt draagbare drukkalibratie naar een nieuw niveau. De ADT 760 is een zeer innovatief ontworpen drukkalibrator. Het instrument heeft een gewicht van minder dan 1,8 kg, een ingebouwde pomp, een precisie druksensor, een interne drukregelaar en een groot touch-screen kleurendisplay. Om druk te genereren, stelt u gewoon de gewenste druk in en de Additel 760 doet de rest.

Iedere Additel 760 heeft vier kanalen: een intern druk kanaal voor het meten en simuleren van druk, twee externe druk meet kanalen en één kanaal om elektronische signalen (mA en V) te kunnen meten en simuleren. De 760 serie is leverbaar in drie standaard modellen, de ADT760-MA, ADT760-D en ADT760-LLP, met de mogelijkheid om HART communicatie, een documentatie functie en data logging toe te voegen.

Belangrijkste kenmerken
• Volledig automatische kalibrator met ingebouwde pomp en druk regelaar

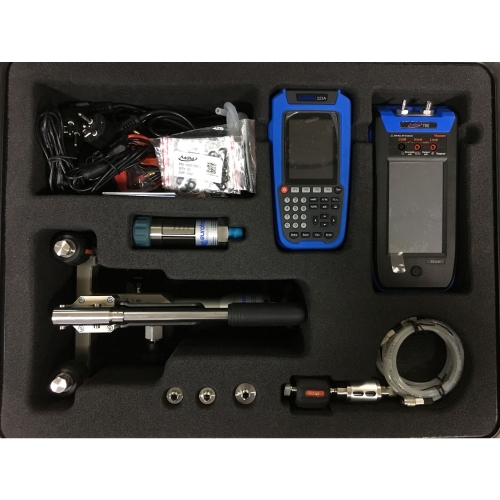

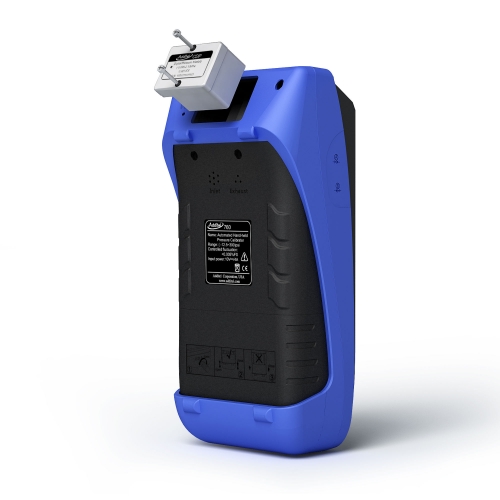

• Verwisselbare interne drukmodules voor het uitbreiden van meetbereiken
• Nauwkeurigheid (1 jaar) van 0.02%FS

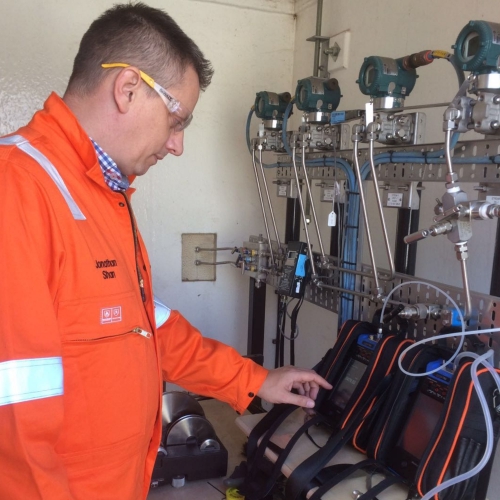

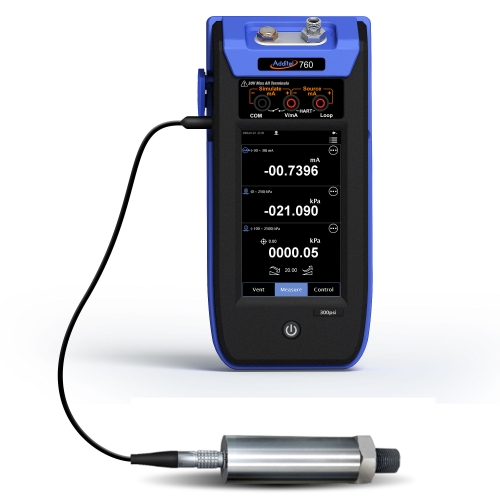

• Externe druk modules beschikbaar (alleen druk meten)
• Minder dan 1.8 kg voor handheld bediening
• Druk simuleren, druk meten en elektrisch meten en simuleren (mA)
• 24V transmitter voeding
• 4 kanalen
• Optioneel HART communicatie
• Optioneel data logging en documenteren
• USB, Wi-Fi en Bluetooth communicatie

ADT760-D Verschildruk
De 760-D genereert gauge en verschil druk, maar in een hoger drukbereik dan de ADT760-LLP. Met zijn meetbereik van -0.86 tot 2.5 bar en een nauwkeurigheid van 0.02%FS, is de ADT760-D een ideale oplossing voor het kalibreren van de meest voorkomende gauge en verschil drukmetingen. De Additel 760-D wordt geleverd met een interne drukmodule die de volledige range afdekt, maar er zijn ook drukmodules leverbaar met een lager bereik tot ±10 inH2O verschildruk voor het verbeteren van de nauwkeurigheid bij lagere drukken.

Documenting Process Functionality
Ieder model van de Additel 760 series heeft de optie om via een ingebouwde documentatie en communicatie functie van uw Additel 760 een multifunctionele documenterende process calibrator te maken. Deze optie geeft u HART communicatie, taak documentatie en data logging.

AMS Driver
Er is nu ook een driver voor AMS van Emerson beschikbaar. De kalibratie-assistent "SNAP-ON-applicatie" vormt een interface met documenterende kalibrators om de kalibraties van HART, Foundation Fieldbus, IEC-goedgekeurde WirelessHART® en conventionele apparaten te beheren. Hiermee kunt u uw apparaten eenvoudig groeperen in testschema's en kalibratieroutes voor maximale efficiëntie. Breng gegevens over tussen uw kalibrator en de AMS Device Manager om handmatige records en de mogelijkheid van fouten te elimineren. Door de Additel 760 zelf documenterende kalibrator te gebruiken, kunt u ook automatisch As-Found / As-Left-informatie in de AMS Device Manager-database controleren. Open de kalibratiegeschiedenis van elk apparaat en genereer kalibratiecertificaten en -rapporten als u papieren documentatie nodig hebt.

_Features	^Model	760-LLP	760-LLP-DL	760-D	760-D-DL	760-MA	760-MA-DL
Pressure Range^[1]		±30 in H2O (±75 mbar)	±30 in H2O (±75 mbar)	-12.5 to 35 psi (-0.86 to 2.5 bar)	-12.5 to 35 psi (-0.86 to 2.5 bar)	-12.5 to 300 psig (-0.86 to 20 bar)	-12.5 to 300 psig (-0.86 to 20 bar)
Accuracy (%FS)		0.05^[1]	0.05^[1]	0.01%FS or 0.02%FS^[1]	0.01%FS or 0.02%FS^[1]	0.01%FS or 0.02%FS^[1][3]	0.01%FS or 0.02%FS^[1][3]
Stability (%FS)		0.005^[2]	0.005^[2]	0.005^[2]	0.005^[2]	0.005^[2]	0.005^[2]
Gauge Pressure		•	•	•	•	•	•
Differential Pressure		•	•	•	•
Absolute Pressure						•	•
Barometric Pressure						•	•
Removable Internal Module		•	•	•	•	•	•
External Pressure Module		•	•	•	•	•	•
Temperature Compensated		•	•	•	•	•	•
Built-in Electrical Pump		•	•	•	•	•	•
Built-in Filter		•	•	•	•	•	•
Built-in Liquid Trap		•	•	•	•	•	•
Source/Simulate 24 mA		•	•	•	•	•	•
Measure mA or V		•	•	•	•	•	•
24V Loop power		•	•	•	•	•	•
Pressure switch test		•	•	•	•	•	•
HART Communication			•		•		•
Task Documentation			•		•		•
Data Logging			•		•		•
Channels		4	4	4	4	4	4
Bluetooth, Wi-Fi and USB		•	•	•	•	•	•

[1] FS specification applies to the span of the module range.
[2] Stability based on FS of the internal pressure module. Internal module is switchable.
[3] Specification based on gauge measurement. An additional 55 pa uncertainty will need to be included when measuring in absolute mode.

Pressure Specifications

*Specification*	*760-LLP*	*760-D*	*760-MA*
Max Pressure Range	±30 inH₂O (75 mbar)	-12.5 to 35 psi (-0.86 to 2.5 bar)	-12.5 to 300 psig (-0.86 to 20 bar.g)
Accuracy	0.05%FS^[1]	0.01%FS or 0.02%^[1]	0.01%FS or 0.02%FS^[1][3]
Stability	0.005%FS^[2]	0.005%FS^[2]	0.005%FS^[2]
Pressure Type	Differential, Gauge	Differential, Gauge	Gauge, Absolute
Over Range Indication	120%
Resolution	6 digits
Measurement Units	Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH₂O@4°C, mmH₂O@4°C, cmH₂O@4°C, mH₂O@4°C, mmH₂O@20°C, cmH₂O@20°C, mH₂O@20°C, mH2O@68°F, inH₂O@20°C, kgf/cm2, mtorr, torr, lb/ ft2, tsi, custom
Barometric Accuracy	N/A	N/A	55 Pa^[4]
Connection	Barb fitting	Hose, 5 ft (1.5 m), with built-in filter to 1/4BSPF, 1/4NPTF, and M20F adapters	Hose, 5 ft (1.5 m), with built-in filter to 1/4BSPF, 1/4NPTF, and M20F adapters
Pressure Output Rate	<30 Seconds (30 inH₂O / 100 ml)	<10 Seconds (35 psi / 5 ml)	<90 Seconds (300 psi / 5 ml)

[1] FS specification applies to the span of the module range.
[2] Stability based on FS of the internal pressure module. Stability is 0.005%FS or 0.05 pa whichever is greater. Internal module is switchable.
[3] Specification based on gauge measurement. An additional 55 pa uncertainty will need to be included when measuring in absolute mode.
[4] 55 Pa uncertainty (k=2) includes calibration uncertainty, linearity, and long-term stability (<30 Pa per year). Barometer range of 60 to 110 kPa.

Electrical Specifications

Specification	Range	Resolution	Accuracy	Note
mA Measure	± 30 mA	0.0001 mA	0.01%RD + 1.5 μA	Impedance <10 Ω
V Measure	± 30 V	0.0001 V	0.01%RD + 1.5 mV	Impedance >1 MΩ
mA Source	24 mA	0.001 mA	0.01%RD + 1.2 μA	20 mA @ 1 K
Loop Power Source	24 V	N/A	± 1 V	50 mA (Max Loading)
Pressure Switch	Open, close. Support for mechanical switches and NPN/PNP digital switches.
Temperature Compensation	8 °C to 38 °C
Temperature Coefficient	< ± ( 0.001%RD + 0.001%FS ) / °C outside of 8°C to 38°C

Internal Modules Specifications and Compatibility

*Module*	*Module* *Range*^[6]		*Media*	*Accuracy* *(%FS)*^[1]	*Burst* *Pressure*	*760-LLP*	*760-D*	*760-MA*
*Module*	*inH*₂O	*mbar*	*Media*	*Accuracy* *(%FS)*^[1]	*Burst* *Pressure*	*760-LLP*	*760-D*	*760-MA*
DP025	±0.25	±0.62	G	0.2^[2]	100x	•
DP050	±0.5	±1.25	G	0.1^[3]	100x	•
DP1	±1	±2.5	G	0.05^[4]	100x	•
DP2	±2	±5	G	0.05^[4]	100x	•
DP5	±5	±10	G	0.05^[4]	50x	•
DP10	±10	±25	G	0.05^[4]	20x	•	•
DP20	±20	±50	G	0.05	20x	•	•
DP30	±30	±75	G	0.05	20x	•	•
DP50	±50	±125	G	0.05	3x		•
DP100	±100	±250	G	0.02	3x		•
DP150	±150	±350	G	0.02	3x		•
DP300	±300	±700	G	0.02	3x		•
DP400	-380 to 400	-950 to 1K	G	0.02	3x		•
DP800	-380 to 800	-950 to 2K	G	0.02	3x		•
DP1K	-380 to 1K	-950 to 2.5K	G	0.02	3x		•
Gauge Pressure	psig	bar.g
CP10	±10	±0.7	G	0.01 / 0.02^[5]	3x		•	•
CP15	-13.5 to 15	-0.95 to 1	G	0.01 / 0.02^[5]	3x		•	•
CP30	-13.5 to 30	-0.95 to 2	G	0.01 / 0.02^[5]	3x		•	•
CP35	-13.5 to 35	-0.95 to 2.5	G	0.01 / 0.02^[5]	3x		•	•
CP50	-13.5 to 50	-0.95 to 3.5	G	0.01 / 0.02^[5]	3x			•
CP100	-13.5 to 100	-0.95 to 7	G	0.01 / 0.02^[5]	3x			•
CP150	-13.5 to 150	-0.95 to 10	G	0.01 / 0.02^[5]	3x			•
CP200	-13.5 to 200	-0.95 to 14	G	0.01 / 0.02^[5]	3x			•
CP300	-13.5 to 300	-0.95 to 20	G	0.01 / 0.02^[5]	3x			•

[1] FS specification applies to the span of the module range. Accuracy includes one-year stability, except for DP025 to DP10 modules.
[2] Accuracy is a 6 months spec, 1-year long-term drift is 0.2%FS.
[3] Accuracy is a 6 months spec, 1-year long-term drift is 0.1%FS.
[4] Accuracy is a 6 months spec, 1-year long-term drift is 0.05%FS.
[5] Specification based on gauge measurement. An additional 55 pa uncertainty will need to be included when measuring in absolute mode. Applicable only for use with the ADT760-MA
[6] The low module pressure range may be outside the pressure range of the calibrator

* ADT155 Pressure Modules are calibrated in psi & inH2O

General Specifications

Specification	Description
Channels	Four total: one electrical, one internal pressure, two external pressure (measure only)
Enclosure IP Rating	IP52 water and dust proof
Battery	Rechargeable Li-Ion battery, typically 10 hours of operation, recharges in less than 4 hours
Display	Color 800 x 480 TFT 5-inch touch screen
Communications	Bluetooth, WiFi and USB
Weight	<4 lbs (<1.8 kg)
Size	9.3 x 4.3 x 2.8 in (235 x 110 x 70 mm)
Certification	ISO 17025 accredited certificate with data included
HART Communications	Optional (ADT760-X-DL model)
Data Logging	Optional (ADT760-X-DL model), up to 1,000,000 readings (date and time stamped)
Task Documentation	Optional (ADT760-X-DL model) up to 1000 tasks
Automation Functions	Switch test, auto step, leak test
Misuse Protection	Up to 30 V on any two sockets
Multi Lingual Interface	English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian
Pump Life	>500,000 cycles
Power	Rechargeable Li-Ion battery, external power: 110/220 V power adapter 10 V
Environment Specifications	Operation: 32°F to 122°F (0°C to 50°C), 0-90% RH, less than 3,000 meters Compensated temperature: 32°F to 122°F (0°C to 50°C) Storage temperature: -4°F to 158°F (-20°C to 70°C)
Vibration and Shock	Vibration: 4 g (20 to 2,000 Hz) Shock: 8 g
Compliance	CE
Software	ACal, Land, LogII
Warranty	1 year
Hose & Filter End of Life	The estimated End of Life (EOL) expectancy for all accessory hoses and filters (pneumatic and hydraulic) is approximately 10 years and should be replaced at the first sign of wear or damage.

Optional Internal Pressure Modules

Module number	Description
ADT155-20-DP025	Pressure module for ADT760-LLP, ±0.25 inH2O, ±0.2%FS
ADT155-10-DP050	Pressure module for ADT760-LLP, ±0.5 inH2O, ±0.1%FS
ADT155-05-DP1	Pressure module for ADT760-LLP, ±1 inH2O, ±0.05%FS
ADT155-05-DP2	Pressure module for ADT760-LLP, ±2 inH2O, ±0.05%FS
ADT155-05-DP5	Pressure module for ADT760-LLP, ±5 inH2O, ±0.05%FS
ADT155-05-DP10	Pressure module for ADT760-LLP & -D ±10 inH2O, ±0.05%FS
ADT155-05-DP20	Pressure module for ADT760-LLP & -D, ±20 inH2O, ±0.05%FS
ADT155-05-DP30	Pressure module for ADT760-LLP & -D, ±30 inH2O, ±0.05%FS
ADT155-05-DP50	Pressure module for ADT760-D, ±50 inH2O, ±0.05%FS
ADT155-02-DP100	Pressure module for ADT760-D, ±100 inH2O, ±0.02%FS
ADT155-02-DP150	Pressure module for ADT760-D, ±150 inH2O, ±0.02%FS
ADT155-02-DP300	Pressure module for ADT760-D, ±300 inH2O, ±0.02%FS
ADT155-02-DP400	Pressure module for ADT760-D, -380 to 400 inH2O (-13.5 to 15 psi), ±0.02%FS
ADT155-02-DP800	Pressure module for ADT760-D, -380 to 800 inH2O (-13.5 to 30 psi), ±0.02%FS
ADT155-02-DP1K	Pressure module for ADT760-D, -380 to 1K inH2O (-13.5 to 35 psi), ±0.02%FS
ADT155-01/02-CP10	Pressure module for ADT760-D & -MA, ±10 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP15	Pressure module for ADT760-D & -MA, -13.5 to 15 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP30	Pressure module for ADT760-D & -MA, -13.5 to 30 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP35	Pressure module for ADT760-D & -MA, -13.5 to 35 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP50	Pressure module for ADT760-D & -MA, -13.5 to 50 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP100	Pressure module for ADT760-MA, -13.5 to 100 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP150	Pressure module for ADT760-MA, -13.5 to 150 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP200	Pressure module for ADT760-MA, -13.5 to 200 psi, ±0.01%FS, ±0.02%FS
ADT155-01/02-CP300	Pressure module for ADT760-MA, -13.5 to 300 psi, ±0.01%FS, ±0.02%FS

* ADT155 Pressure modules are calibrated in psi & inH2O
