Additel 260Ex

Draagbare Multifunctionele Recorder

Prijs op aanvraag

De Additel 260Ex is een intrinsiek veilige multifunctionele recorder met met 8 verschillende kanaalconfiguraties.

Offerte

Productbeschrijving
Extra informatie
Downloads

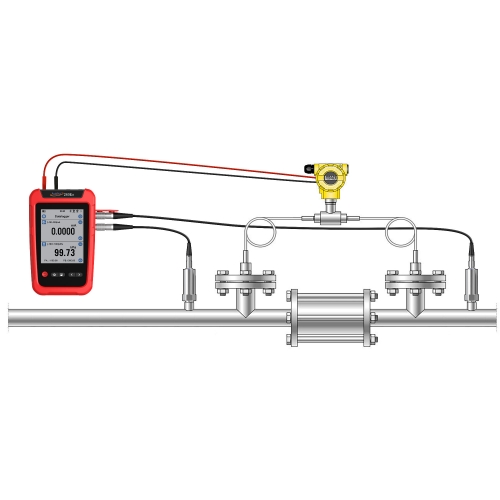

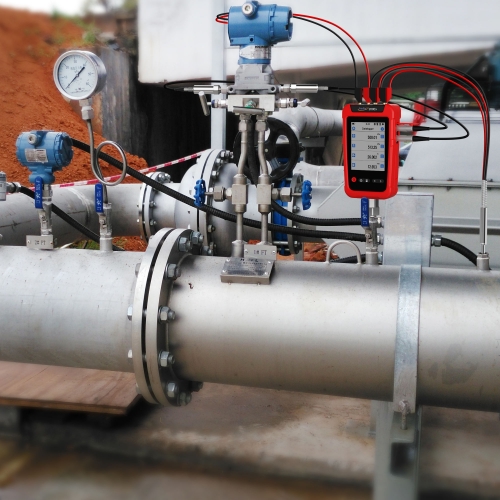

Additel's 260Ex is een intrinsiek veilige handheld meerkanaals referentierecorder met 8 verschillende kanaalconfiguraties. Met de meest veelzijdige en capabele handheld van Additel, zijn technici nu in staat gegevens voor druk, temperatuur (RTD-sondes beschikbaar), barometrische druk en elektrische metingen te meten en te verzamelen in één zeer handig en draagbaar apparaat. De krachtige logcapaciteit en het hoge niveau van intrinsiek veiligheid maken de ADT260Ex de perfecte metgezel voor gebruik in de pijpleiding industrie. Door ondersteuning van hydrostatische druktests, lektests, inlaat- en uitlaat druktests bij pompstations, veiligheidsklep en ex-proof membraantests , druktesten, pijpleiding filtertesten, differentiële druktransmitter / flowcomputingtests, evenals routinematige kalibratie van drukapparaten.
- Tot 8 meet kanalen
- Intrinsiek veilig
- Verwisselbare drukmodules
- Data logging met Real Time Grafische Trending
- Ondersteund Hydrostatisch Testen
- Kleuren Touchscreen Display
- Ingebouwde Barometer
- Optionele RTD Probes beschikbaar
- Bluetooth en USB Communicatie
- Communiceert met Additel Link (Mobiele App)

Functional Features
RTD Measurement	2, 3, or 4 wire (user selectable). Unit measurement as °C, °F, K or ohms.
Filtering	Average sliding filter (sample 1 ~ 50) First-order linear filter (coefficien: 0.01 ~ 1)
Switch	The measurement value will be automatically displayed at the moment the switch changes state. The latest 8 state changes will be stored in the memory.
Pressure Tare	Tare value is set through the user interface
Pressure Stability Indicator	Stability time and criteria is selectable
Power Management	Backlight auto off, Auto power off

General Specifications

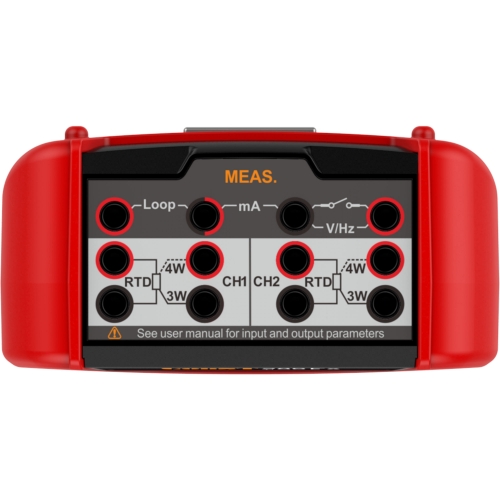

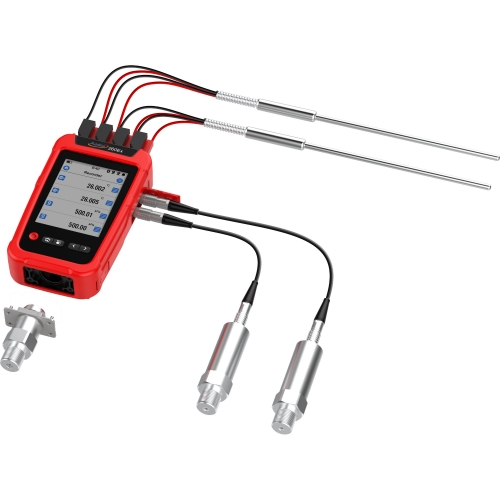

Input Channels	Top: 2 channels RTD measurement, 1 channel electric signal measurement, φ4mm banana jacks
	Right side: 2 channels for external digital pressure module, Lemo style connection
	Bottom: embedded digital pressure module (model ADT158Ex), field switchable.
	Internal: 1 embedded atmospheric pressure sensor
Barometric Accuracy	±55 Pa
Measurement Rate	mV, V, mA & frequency and RTD: 3 times/ sec
	Pressure module: 1~10 times/sec selectable (3 as default)
	Barometer: 1 time/sec
Data Storage	Logging interval: from 0.1~9999 seconds, log up to 10 million readings (single channel)
Power	4000mAh, 14.4Wh explosion-proof intelligent lithium battery, charging time is 6~8 hours, the battery can be charged independently, typical working time 100 hours (measurement mode)
Environmental	Guaranteed temperature range of technical specifications: (-10 ~ 50)°C
	Operating temperature: (-20 ~ 50)°C
	Storage temperature range: (-20 ~ 70)°C
	Humidity: 0% to 95% RH, non-condensing.
	Altitude: 3000 meters
Warm-up Time	10 min to fully meet technical specifications
Port Protection Voltage	30V max
Explosion-proof Grade	ATEX & IECEX: Ex ia IIC T4 Ga (Ta = -20°C to +50°C)
	CSA:	Class I, Division 1, Group A,B,C and D, T4
		Class I, Zone 0, AEx ia IIC T4 Ga
		Ta = -20°Cto + 50°C Ex ia IIC T4 Ga
	UKCA-EX
CE Certification	TUV IEC61326, IEC61010
Rohs Compliance	Rohs II Directive 2011/65/EU, EN50581:2012
Protection Level	IP67, 1 meter drop test
Communication	Isolate USB-Type C (slave), Bluetooth
Display	4.4-inch color display capacitive screen, transflective, with LED backlight
Size	6.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm) which doesn't include the bottom mount ADT158Ex if installed.
Weight	1.65 lb (0.75 kg)
Warranty Time	1 year

Electrical Specifications
Specification	Range	Accuracy	Resolution	Note
RTD Measurement Accuracy	0~400Ω	0.01%RDG+0.005%FS [1]	1mΩ	Excitation current: 1 mA
Voltage Measurement	±300mV	0.015%RDG + 0.005%FS	1uV	Impedance: >100MΩ
Voltage Measurement	±30V	0.015%RDG + 0.005%FS	0.1mV	Impedance: >1MΩ
Current Measurement	±30mA	0.015%RDG + 0.005%FS	0.1uA	Impedance: < 40Ω
Frequency Measurement	0.01~50000Hz (auto range)	0.005% RDG + 2 last digit	6-digit auto-resolution	Min threshold voltage: 2.5V
Frequency Measurement	Units: Hz, kHz, MHz, CPM, CPH, s, ms, us
Switch On-Off Measurement	Inspection voltage: (3 ~ 30)V
Switch On-Off Measurement	Response speed: < 10ms, supports wet and dry switch
Pulse Count	0 ~ 9999999, optional rising edge and falling edge
Pulse Count	Min threshold voltage: 2.5V
Loop Power	20V ± 10%, max output impedance: 320Ω, max load current: 25mA
Note [1]: Accuracy applies to 4-wire probes. For 3-wire probes add 10mΩ, for 2-wire probes add 50mΩ

Pressure Technichal Specifications
Pressure resolution	4, 5, or 6 digit resolution (user selectable)
Temperature Compensation	-10°C~50 °C
Pressure Module Type	Built-in digital pressure module: ADT158Ex, for more detailed information, please see ADT 158Ex datasheet. External digital pressure module: ADT161Ex,for more detailed information, please see ADT 161Ex datasheet.
Specifications	Refer to the technical specification of the ADT158Ex and ADT161Ex
High Static Pressure and Differential Pressure Synthesis Index	Two modules must be with the same range; Typical Differential pressure accuracy of 0.002%FS or 0.02%RD, whichever is greater when using two 0.02%FS external modules. Typical Differential pressure accuracy of 0.002%FS or 0.05%RD, whichever is greater when using two 0.05%FS external modules.

Gauge Pressure [1]
P/N	Pressure Range		Media [2]	Accuracy (%FS)	Burst Pressure
P/N	psi	bar	Media [2]	Accuracy (%FS)	Burst Pressure
V15	-15	-1	G	0.02	3×
GP2	2	0.16	G	0.05	3×
GP5	5	0.35	G	0.05	3×
GP10	10	0.7	G	0.02	3×
GP15	15	1	G	0.02	3×
GP30	30	2	G	0.02	3×
GP50	50	3.5	G , L	0.02	3×
GP100	100	7	G , L	0.02	3×
GP150	150	10	G , L	0.02	3×
GP300	300	20	G , L	0.02	3×
GP500	500	35	G , L	0.02	3×
GP600	600	40	G , L	0.02	3×
GP1K	1000	70	G , L	0.02	3×
GP1.5K	1500	100	G , L	0.02	3×
GP2K	2000	140	G , L	0.02	3×
GP3K	3000	200	G , L	0.02	3×
GP5K	5000	350	G , L	0.02	3×
GP10K	10000	700	G , L	0.02	2×
GP15K	15000	1000	G , L	0.05	2x
GP20K	20000	1400	G , L	0.05	1.5x
GP25K	25000	1600	G , L	0.05	1.5x
GP30K	30000	2000	G , L	0.05	1.5x
GP36K	36000	2500	G , L	0.05	1.5x
GP40K	40000	2800	G , L	0.05	1.35x
GP50K	50000	3500	G , L	0.1	1.2x
GP60K	60000	4200	G,L	0.1	1.1x
[1] Sealed gauge pressure for above 1000 psi
[2] G=Gas, L=Liquid

Compound Pressure
P/N	Pressure Range		Media	Accuracy	Pressure Rating
P/N	psi	bar	Media	Accuracy	Burst	Over Pressure
CP2	±2	±0.16	G	0.05% FS	3x	1.2x
CP5	±5	±0.35	G	0.02% FS	3x	1.2x
CP10	±10	±0.7	G	0.02% FS	3x	1.2x
CP15	±15	±1.0	G	0.02% FS	3x	1.2x
CP30	-15 to 30	-1 to 2.0	G	0.02% FS	3x	1.2x
CP50	-15 to 50	-1 to 3.5	G	0.02% FS	3x	1.2x
CP100	-15 to 100	-1 to 7.0	G,L	0.02% FS	3x	1.2x
CP300	-15 to 300	-1 to 20	G,L	0.02% FS	3x	1.2x
CP500	-15 to 500	-1 to 35	G,L	0.02% FS	3x	1.2x
CP600	-15 to 600	-1 to 40	G,L	0.02% FS	3x	1.2x
CP1K	-15 to 1,000	-1 to 70	G,L	0.02% FS	3x	1.2x
CP2K	-15 to 2,000	-1 to 140	G,L	0.02% FS	3x	1.2x
CP3K	-15 to 3,000	-1 to 200	G,L	0.02% FS	3x	1.2x
CP5K	-15 to 5,000	-1 to 350	G,L	0.02% FS	3x	1.2x
CP10K	-15 to 10,000	-1 to 700	G,L	0.02% FS	2x	1.2x

Documents:

Documents	Upload Date	Size
Additel 260 Handheld Multichannel Reference Recorder Datasheet	2022.3.17	0.8 MB
Additel 158 Pressure Modules	2022.1.13	0.6 MB
Hydrostatic Testing Application Note	2022.3.17	0.3 MB
Additel 260Ex Pressure Calibratio User Manual	2019.3.11	5.7 MB

Software and Firmware
Name	Versions	Upload Date	Size
Additel 226Ex/227Ex/260Ex/273Ex Firmware Update Tool		2022-04-08	17 MB
