ADT226

Multifunctionele Proces Calibrator

Prijs op aanvraag

De nieuwe Additel Multi-functionele Process Calibrator serie tilt draagbaarheid, functionaliteit en nauwkeurigheid naar een geheel nieuw niveau.

Offerte

Productbeschrijving
Extra informatie
Video
Downloads

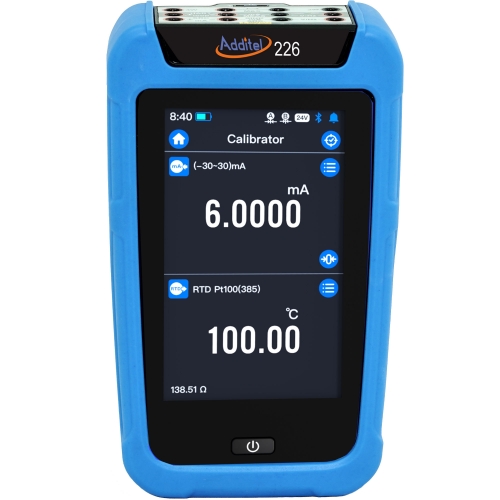

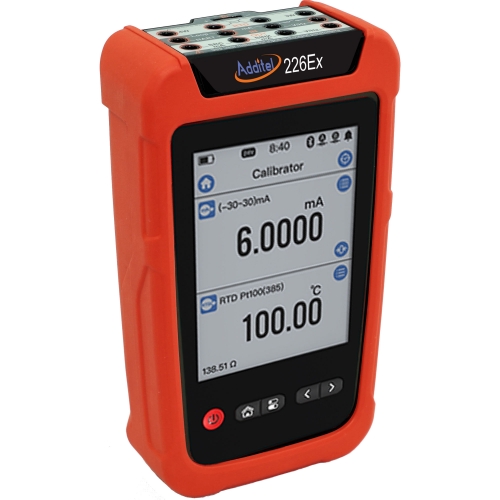

Additel's nieuwe Multi-functionele Process Calibrator serie tilt draagbaarheid, functionaliteit en nauwkeurigheid naar een geheel nieuw niveau, mede dankzij een intuïtief en gebruiksvriendelijk kleuren-touchscreen. De ADT226 is een krachtige maar kosteneffectieve proceskalibrator, optioneel verkrijgbaar in een ATEX-gecertificeerde intrinsiek veilige uitvoering (ADT226Ex) waarmee u kalibratiewerk kunt uitvoeren in de meest veeleisende omgevingen. We zijn ervan overtuigd dat deze nieuwe tools niet alleen aan uw kalibratievereisten zullen voldoen, maar dat ze metrologie ook voor u eenvoudig zullen maken!

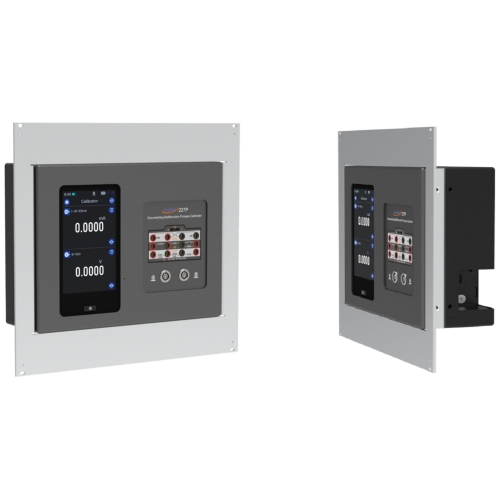

Sinds kort is het ook mogelijk om de ADT226 in een testbank te plaatsen, model ADT226P. Hiermee kunnen wij een testbank leveren die compleet is voorzien van ingebouwde Additel apparatuur. Zo heeft u alle functionaliteit van een multifunctionele kalibrator in een testbank en daarnaast een mA input en 24V voeding voor het kalibreren van druktransmitters in combinatie met een Additel druk controller.

Electrical Specifications - Source Accuracy
Specifications	ADT226			ADT226Ex
Specifications	Range	Resolution	Accuracy	Range	Resolution	Accuracy
Voltage DC	0 to 15 V	0.1 mV 0.015%RDG+0.005%FS	0 to 10.5 V	0.1 mV	0.02%RDG+0.005%FS
Current DC	0 to 25 mA	0.1 uA 0.015%RDG+0.005%FS	0 to 25 mA	0.1 uA	0.02%RDG+0.005%FS
Resistance	0 to 400 Ω	1 mΩ 0.015%RDG+0.005%FS	0 to 400 Ω	1 mΩ	0.02%RDG+0.005%FS
Resistance	0 to 4000 Ω	10 mΩ 0.015%RDG+0.005%FS	0 to 4000 Ω	10 mΩ	0.02%RDG+0.005%FS
Frequency	0.01 to 50000.0 Hz	Auto range, 6-digit	0.005%RDG+5 on last digit6-digit 0.005%RDG+5 on last digit	0.01 to 50000.0 Hz	Auto range, 6-digit	0.005%RDG+5 on last digit6-digit 0.005%RDG+5 on last digit
Voltage mV (TC)	-10 to 75 mV	0.1 uV	0.015%RDG + 0.005%FS	-10 to 75 mV	0.1 uV	0.02%RDG+0.005%FS
Pulse	0 to 9999999	1 N/A	0 to 9999999	1		N/A
Pulse	Optional rising edge and falling edge, minimum threshold voltage: 2.5V
Loop power (max 25mA)	24 V	N/A	±1 V	20 V	N/A	± 10%

Electrical Specifications - Measurement Accuracy
Specifications	ADT226			ADT226Ex
Specifications	Range	Resolution	Accuracy	Range	Resolution	Accuracy
Voltage DC	-300 to 300 mV	1 μV	0.015% RDG + 0.005% FS	-300 to 300 mV	1μV	0.02% RDG + 0.005% FS
	-30 to 30 V	0.1 mV	0.015%RDG+0.005%FS	-30 to 30 V	0.1 mV	0.02% RDG + 0.005% FS
	Temperature Coefficient: ±5 ppm FS/°C (-10°C to 10°C and 30°C to 50°C)
	Impedance: -300 mV to 300 mV = > 100 MΩ, -30 V to 30 V = >1 MΩ
DC High Voltage	-3 to 3 V	0.1 mV	0.05% RDG + 0.01% FS	N/A
	-30 to 30 V	1 mV	0.05% RDG + 0.01% FS
	-300 to 300 V	10 mV	0.05% RDG + 0.01% FS
	Temperature coefficient: ±0.0025% FS/°CDC High Voltage N/A(-10°C to 10°C and 30°C to 50°C)
	The highest input voltage is 300 V, IEC61010 300V CATII
	Common mode rejection: >100 dB (at 50 or 60 Hz)
	Impedance: > 4 MΩ, DC coupling
AC High Voltage	3V (40 to 500 Hz)	0.1 mV	0.5% RDG + 0.05% FS	N/A
	30V (40 to 500 Hz)	1 mV	0.5% RDG + 0.05% FS
	300V (40 to 500 Hz)	10 mV	0.5% RDG + 0.05% FS
	Temperature coefficient: ±（0.025% RD + 0.0025% FS /°C, -10°C to 10°C and 30°C to 50°C)
	The highest input voltage is 300 V, IEC61010 300V CATII
	9% to 100% of range is suitable for the above accuracy indicators
	Impedance: >4 MΩ, <100pF, AC coupling
Current DC	-30 to 30 mA	0.1 μA	0.015% RDG + 0.005% FS	-30 to 30 mA	0.1 μA	0.02% RDG + 0.005% FS
Current DC	Temperature Coefficient: ±5ppm FS/°C (-10°C to 10°C and 30°C to 50°C), Impedance: < 40 Ω
Resistance (4-Wire)	0 to 400 Ω	1 mΩ	0.015% RDG + 0.005% FS	0 to 400 Ω	1 mΩ	0.02% RDG + 0.005% FS
	0 to 4000 Ω	10 mΩ	0.015% RDG + 0.005% FS	0 to 4000 Ω	10 mΩ	0.02% RDG + 0.005% FS
	Temperature coeficient: ±5 ppm FS/°C (-10°C to 10°C and 30°C to 50°C)
	2-Wire + 50 mΩ, 3-wire+ 10 mΩ
	Excitation current: 0.25 mA
Voltage mV (TC)	-10 to 75 mV	0.1 μV	0.015% RDG + 0.005% FS	-10 to 75 mV	0.1 μV	0.02% RDG + 0.005% FS
	Temperature Coefficient: ±5ppm FS/°C (-10°C to 10°C and 30°C to 50°C)
	Impedance: >100 MΩ
Frequency	0.01 to 50000 Hz	Auto range, 6-digit	0.005% RDG + 5 on last digit	0.01 to 50000 Hz	Auto range, 6-digit	0.005% RDG + 5 on last digit
	Minimum threshold voltage: 2.5 V
	Supported units: Hz, kHz, MHz, CPM, CPH, s, ms, µs
Pulse	0 to 9999999	1	N/A	0 to 9999999	1	N/A
Pulse	Optional rising edge and falling edge, minimum threshold voltage: 2.5V
Switch	Support for dry or wet switch, voltage range of 3 to 30 V, response speed of < 10 ms

General Specification
	ADT226	ADT226Ex
Operating Temperature	-10°C to 50°C
Specification guaranteed temperature range	10°C to 30°C
Storage Temperature	-20°C to 70°C
Humidity	<95%, non-condensing
Power supply	6600mAh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independently	4000mAh 14.4Wh Explosion-proof lithium battery packcharging time 6~8 hours, battery pack can be charged independently
User interface	Icon drive menus	Icon driven menus with navigation buttons
Ports protection voltage	50V max	30V max
Display	5.0 inch 480 x 800 mm TFT LCD capacitive screen	4.4 inch 640 x 480 mm color display capacitive screen
Maximum altitude	3000 meters
European Compliance	CE Mark

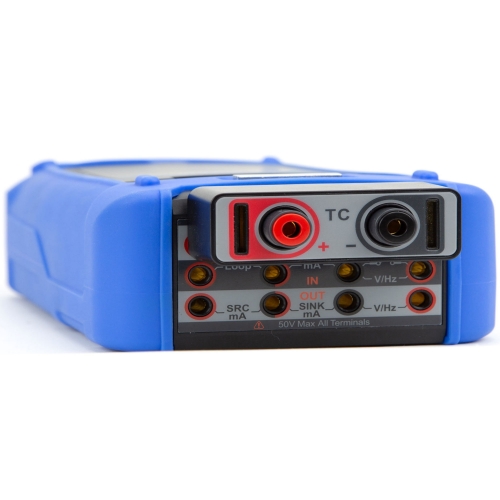

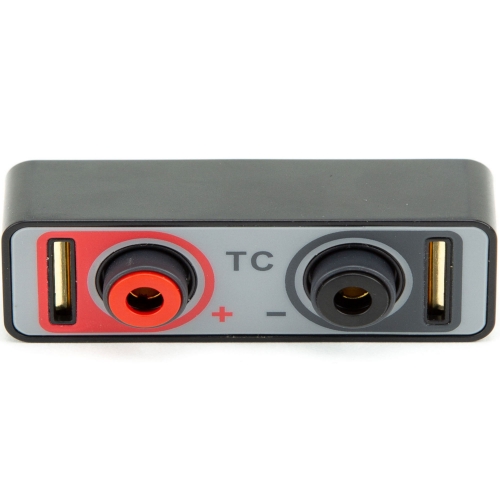

Electrical Connection	Ø4mm sockets and flat mini-jack thermocouple socket
Size	6.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm)
Weight	1.6 lb (0.7 kg)	1.65 lb (0.75 kg)
Battery	Rechargeable Li-ion battery (included)
Battery Life	Typically 16 hours	Typically 35 hours
Battery Charge	110V/220V external power adapter included. Battery can be charged external to the unit. Typically charge time is 6-8 hours.
External pressure module	Dual channel serial plug, can connect two digital pressure modules
Warm-up time	Full specification performance is achieved after a 10 minute warm-up time.
ROHS compliant	Rohs II Directive 2011/65/EU, EN50581:2012
Display rate	3 readings per second
Barometric Accuracy (Built-in barometer)	50Pa
IP protection level	IP67, 1 meter drop test
Communication	Isolate USB-TYPEC (slave), Bluetooth BLE
Calibration	ISO 17025 accredited calibration with data

Pressure Specification( ADT226 & ADT226Ex)
The 161 series Intelligent Digital Pressure Modules are available for gauge, vacuum and absolute pressure from -15 psi to 60,000 psi (-1 bar to 4200 bar). Accuracy from 0.02% FS includes operation over 14°F to 122°F (-10°C to 50°C), one year stability and calibration uncertainty. For detailed specifications, please refer to the pressure modules datasheet.

Temperature Specification
Thermocouple Measurement and Source Accuracy
	ADT226				ADT226Ex
Type	Standard	Temperature Range (°C)		Accuracy (°C)	Standard	Temperature Range (°C)		Accuracy (°C)
Type	Standard	Temperature Range (°C)		Measure / Source	Standard	Temperature Range (°C)		Measure / Source
S	IEC 584	-50 to 1768	-50~0	0.96	IEC 584	-50 to 1768	-50~100	0.96
			0~100	0.69			100~1000	0.69
			100~1768	0.64			1000~1768	0.73
R	IEC 584	-50 to 1768	-50~0	1.02	IEC 584	-50 to 1768	-50~0	1.03
			0~200	0.71			0~200	0.71
			200~1768	0.56			200~1768	0.65
B	IEC 584	0 to 1820	200~300	1.89	IEC 584	0 to 1820	200~300	1.9
			300~500	1.25			300~500	1.26
			500~800	0.78			500~800	0.79
			800~1820	0.55			800~1820	0.57
K	IEC 584	-270 to 1372	-250 to -200	0.97	IEC 584	-270 to 1372	-250 to -200	1.04
			-200 to -100	0.3			-200 to -100	0.32
			-100 to 600	0.18			-100 to 600	0.21
			600 to 1372	0.35			600 to 1372	0.43
N	IEC 584	-270 to 1300	-250 to -200	1.5	IEC 584	-270 to 1300	-250 to -200	1.58
			-200 to -100	0.44			-200 to -100	0.46
			-100 to 1300	0.3			-100 to 1300	0.37
E	IEC 584	-270 to 1000	-250~-200	0.54	IEC 584	-270 to 1000	-250~-200	0.59
			-200~-100	0.2			-200~-100	0.22
			-100~700	0.15			-100~700	0.18
			700~1000	0.2			700~1000	0.25
J	IEC 584	-210~1200	-210~-100	0.26	IEC 584	-210~1200	-210~-100	0.28
			-100~700	0.15			-100~700	0.19
			700~1200	0.25			700~1200	0.31
T	IEC 584	-270 to 400	-250~-100	0.74	IEC 584	-270 to 400	-250~-100	0.79
			-100~0	0.15			-100~0	0.16
			0~400	0.11			0~400	0.13
C	ASTM E988	0 to 2315	0 to 1000	0.35	ASTM E988	0 to 2315	0 to 1000	0.4
			1000 to 1800	0.62			1000 to 1800	0.73
			1800 to 2315	1.02			1800 to 2315	1.22
D	ASTM E988	0~2315	0~100	0.39	ASTM E988	0~2315	0~100	0.39
			100~1200	0.37			100~1200	0.43
			1200~2000	0.65			1200~2000	0.77
			2000~2315	1.03			2000~2315	1.24
G	ASTM E1751	0 to 2315	50~100	1.12	ASTM E1751	0 to 2315	50~100	1.12
			100~200	0.72			100~200	0.72
			200~400	0.45			200~400	0.46
			400~1500	0.37			400~1500	0.43
			1500~2315	0.77			1500~2315	0.92
L	DIN43710	-200 to 900	-200 to -100	0.15	DIN43710	-200 to 900	-200 to -100	0.16
			-100 to 400	0.13			-100 to 400	0.14
			400 to 900	0.17			400 to 900	0.2
U	DIN43710	-200 to 600	-200 to 0	0.28	DIN43710	-200 to 600	-200 to 0	0.29
U	DIN43710	-200 to 600	0 to 600	0.13	DIN43710	-200 to 600	0 to 600	0.15
Note: Internal CJC is ±0.15°C (-10°C to 50°C ambient temperature)
Accuracy with external cold junction only, for internal cold junction add 0.15 ℃(k=2)

RTD Measurement and Source Accuracy
Measure and Simulate	Temperature Range (°C)		Accuracy (°C)
Measure and Simulate	Temperature Range (°C)		ADT226	ADT226Ex
PT10(385)	-200 to 850	-200~200	0.62	0.64
		200~600	0.77	0.82
		600~850	0.88	0.95
PT25(385)	-200 to 850	-200~200	0.29	0.31
		200~600	0.4	0.44
		600~850	0.47	0.54
PT50(3916)	-200 to 850	-200~200	0.18	0.2
		200~600	0.27	0.32
		600~850	0.34	0.4
PT100(385) PT100(391) PT100(3916) PT100(3926)	-200 to 850	-200~200	0.13	0.15
		200~600	0.21	0.26
		600~850	0.27	0.34
PT200(385)	-200 to 850	-200~200	0.34	0.12
		200~300	0.37	0.4
		300~600	0.46	0.51
		600~850	0.54	0.61
PT400(385)	-200 to 850	-200~0	0.17	0.06
		0~200	0.21	0.23
		200~600	0.3	0.35
		600~850	0.37	0.44
PT500(385)	-200 to 850	-200~200	0.18	0.2
		200~600	0.27	0.32
		600~850	0.34	0.4
PT1000(385)	-200 to 850	-200~200	0.13	0.15
		200~600	0.21	0.26
		600~850	0.27	0.34
Cu10(427)	-200~260	-200~260	0.59	0.61
Cu50(428)	--200~260	-200~260	0.15	0.17
Cu100(428)	-200~260	-200~260	0.1	0.12
Ni100(617) Ni100(618)	-60~180	-60~0	0.06	0.07
Ni100(617) Ni100(618)	-60~180	0~180	0.06	0.08
Ni120(672)	--80~260	-80~260	0.06	0.07
Ni1000	-50~150	-50~150	0.08	0.09
