Additel 161
Intelligente digitale druk modules
Prijs op aanvraag
Met geavanceerde microprocessortechnologie en ultramoderne siliciumdruksensoren, bieden de ADT161 en ADT161Ex-serie digitale drukmodules van Additel een nauwkeurige, betrouwbare en economische oplossing voor een breed scala aan druktoepassingen.
- Productbeschrijving
- Extra informatie
- Video
- Downloads
-

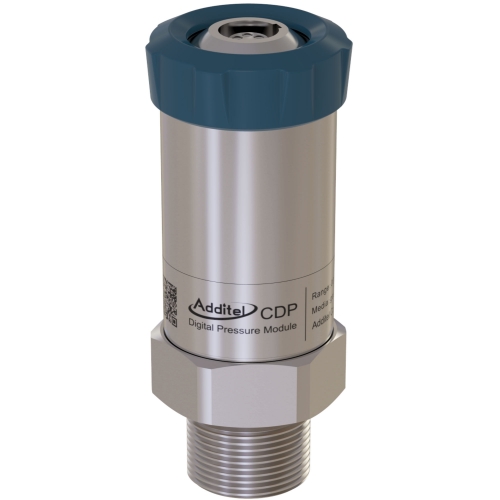

Met geavanceerde microprocessortechnologie en ultramoderne siliciumdruksensoren, bieden Additel's 161 en 161Ex-serie digitale drukmodules een nauwkeurige, betrouwbare en economische oplossing voor een breed scala aan druktoepassingen. De intrinsiek veilige (Ex)-modellen zijn bestand tegen de taak om de best mogelijke resultaten te leveren, zelfs in gevaarlijke omgevingen. Om de beste prestaties te bereiken, is elke siliconen drukopnemer in de module speciaal verouderd, getest en gescreend voor montage.

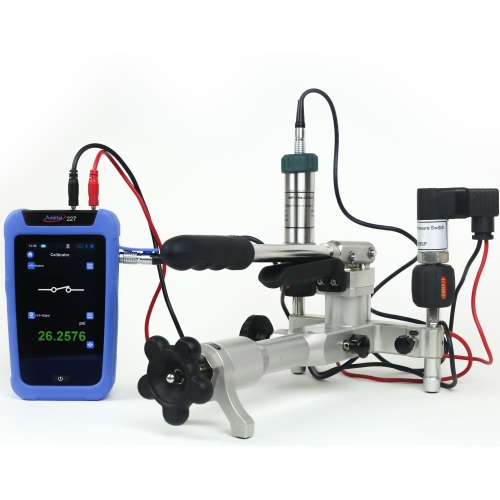

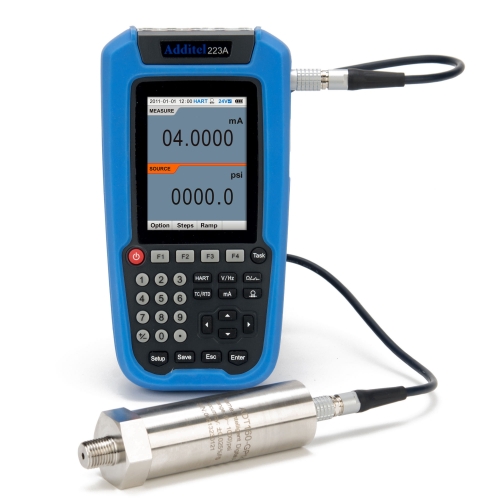

De Additel 161 is speciaal ontworpen als externe drukmodules voor Additel's ADT760 automatische drukkalibrator, de ADT761 geautomatiseerde drukkalibrator, ADT226/ADT227 serie handbediende proceskalibrator en Additel's vlaggenschip de ADT780 drukregelaar. De Additel 161 is ongeëvenaard in prestaties en betrouwbaarheid. Als intrinsieke veiligheid een kritische vereiste is voor uw werkzaamheden, bent u bij ons aan het juiste adres wanneer de ADT226Ex/ADT227Ex proceskalibrator combineert met een van de ADT161Ex-drukmodules.
Kenmerken:
• Drukbereik tot 60.000 psi (4.200 bar)
• Nauwkeurigheid tot 0,01% RD

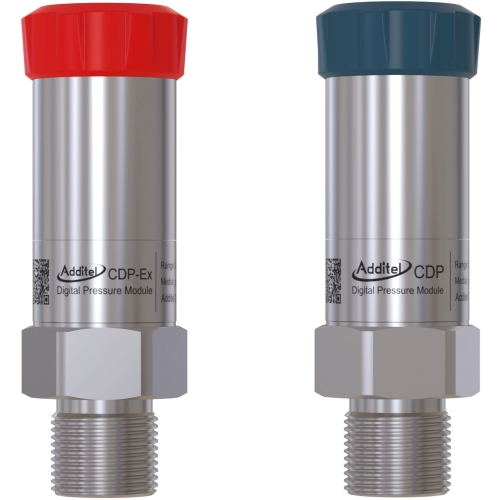

• Intrinsiek veilige (Ex) modellen beschikbaar
• Volledig temperatuurgecompenseerde nauwkeurigheid
• ISO 17025-geaccrediteerde kalibratie met gegevens inbegrepen -
[1] Sealed gauge pressure for above 1000 psiGauge Pressure[1]P/NPressure RangeMedia[2]Accuracy (%FS)Burst Pressure psibarV15-15-1G0.01, 0.023×GP220.16G[3]0.01, 0.02, 0.053×GP550.35G[3]0.01, 0.02, 0.053×GP10100.7G0.01, 0.023×GP15151G0.01, 0.023×GP30302G, L0.01, 0.023×GP50503.5G, L0.01, 0.023×GP1001007G, L0.01, 0.023×GP15015010G, L0.01, 0.023×GP30030020G, L0.01, 0.023×GP50050035G, L0.01, 0.023×GP60060040G, L0.01, 0.023×GP1K100070G, L0.01, 0.023×GP1.5K1500100G, L0.01, 0.023×GP2K2000140G, L0.01, 0.023×GP3K3000200G, L0.01, 0.023×GP5K5000350G, L0.01, 0.023×GP10K10000700G, L0.01, 0.021.5×GP15K150001000G, L0.01, 0.021.5×GP20K200001400G, L0.051.3×GP25K250001600G, L0.051.2×GP30K300002000G, L0.051.5×GP36K360002500G, L0.051.5×GP40K400002800G, L0.051.35×GP50K500003500G, L0.11.2×GP60K600004200G, L0.11.1×
[2] G=Gas, L=Liquid
[3] 0.01%FS,0.02%FS for gas media only
Note: 0.01%FS accuracy sensors cannot be configured as Ex models
and cannot be read by Ex devices.
Compound PressureP/NPressure RangeMediaAccuracyPressure Ratingpsigbar.gBurstOver PressureCP2±2±0.16G0.01, 0.02, 0.053x3xCP5±5±0.35G0.01, 0.023x3xCP10±10±0.7G0.01, 0.023x3xCP15±15±1.0G0.01, 0.023x3xCP30-15 to 30-1 to 2.0G0.01, 0.023x3xCP100-15 to 50-1 to 3.5G0.01, 0.023x3xCP150-15 to 100-1 to 7.0G,L0.01, 0.023x3xCP300-15 to 300-1 to 20G,L0.01, 0.023x3xCP500-15 to 500-1 to 35G,L0.01, 0.023x3xCP600-15 to 600-1 to 40G,L0.01, 0.023x3xCP1K-15 to 1,000-1 to 70G,L0.01, 0.023x3xCP2K-15 to 2,000-1 to 140G,L0.01, 0.023x3xCP3K-15 to 3,000-1 to 200G,L0.01, 0.023x3xCP5K-15 to 5,000-1 to 350G,L0.01, 0.023x3xCP10K-15 to 10,000-1 to 700G,L0.01, 0.022x2xCP15K-15 to 15,000-1 to 1000G,L0.01, 0.023x2x
[1] Contact Additel for other range options.Precision Sensors[1] - Absolute PressureP/NPressure RangeMediaAccuracy[2]Burst Pressurepsiabar.aAP15R0 to 150 to 1G0.01% FS2xCP5M-5 to 5-0.35 to 0.35G0.01% rdg or 0.005% FS whichever is greater3xCP10M-10 to 10-0.7 to 0.7G0.01% rdg or 0.005% FS whichever is greater3xCP15M-15 to 15-1 to 1.0G0.01% rdg or 0.005% FS whichever is greater3xCP30M-15 to 30-1 to 2.0G,L0.01% rdg or 0.005% FS whichever is greater3xCP50M-15 to 50-1 to 3.5G,L0.01% rdg or 0.005% FS whichever is greater3xCP100M-15 to 100-1 to 7.0G,L0.01% rdg or 0.005% FS whichever is greater3xCP300M-15 to 300-1 to 20G,L0.01% rdg or 0.005% FS whichever is greater3xCP500M-15 to 500-1 to 35G,L0.01% rdg or 0.005% FS whichever is greater3xCP1KM-15 to 1000-1 to 70G,L0.01% rdg or 0.005% FS whichever is greater3xCP3KM-15 to 3000-1 to 200G,L0.01% rdg or 0.005% FS whichever is greater3xCP5KM-15 to 5000-1 to 350G,L0.01% rdg or 0.005% FS whichever is greater3xCP10KM-15 to 10.000-1 to 700G,L0.01% rdg or 0.005% FS whichever is greater1.5xCP15KM-15 to 15.000-1 to 1000G,L0.01% rdg or 0.005% FS whichever is greater1.5x
[2] Accuracy includes calibration uncertainty, linearity and long-term stability.
Note: Precision Sensors (CPXM) cannot be configured as Ex models and cannot be read by Ex devices.
[1] FS specification applies to the span of the range. Accuracy includes 1 year stability.Differential Pressure P/N Pressure Range[1] Media Accuracy (%FS) Burst Pressure Static Pressure Range (inH2O) (mbar) DP1 ±1 ±2.5 G 0.05[2] 100× ±10 psi DP2 ±2 ±5.0 G 0.05[2] 100× ±10 psi DP5 ±5 ±10 G 0.05[2] 50× ±10 psi DP10 ±10 ±25 G 0.05[2] 20× ±10 psi DP20 ±20 ±50 G 0.05 20× ±10 psi DP30 ±30 ±75 G 0.05 20× ±10 psi DP50 ±50 ±160 G 0.05 3× ±10 psi DP100 ±100 ±250 G 0.02 3× ±15 psi DP150 ±150 ±350 G 0.02 3× 50 psi DP300 ±300 ±700 G 0.02 3× 50 psi
[2] 0.05%FS accuracy (incl 6 months stability). One year accuracy is 0.05%FS calibration accuracy
combined with 0.05%FS one year stability.
Barometric PressureP/NPressure RangeMediaAccuracyBurst PressureLowHighBP60 kPa110 kPaG55 Pa3×BPH60 kPa110 kPaG10 Pa3×ADT161 Pressure Modules Operating temperature -10°C to 50°C (14°F to 122°F) Storage temperature -30°C to 70°C (-22°F to 158°F) Relative humidity 95% RH Pressure connections (for external use only) 1/4NPT, 1/2NPT, 1/4BSP, 1/2BSP, M20 x15 Enclosure (for external use only) SS enclosure Intrinisic Safety (ADT161Ex models only) ATEX certified intrinsically safe
II 1G EX ia IIC T4 Ga
(ADT161Ex modules only work together with ADT226Ex or ADT227Ex to conform to the ATEX certificate.)Dimensions (Dia x H) 33 mm x 123 mm (1.3” x 4.84”) Weight 0.4 kg (0.99 lb) Warranty 1 Year -
Documents:
Filename Additel 161 Intelligent Digital Pressure Modules Datasheet
